post a CUD error....for us to chew on

goodmoney4badmoney · November 14, 2009 6:12AM

Here's the only cud error I own. Please post another! A split die or nice die cracks would also be great

.

Smittys · November 14, 2009 6:22AM

doh · November 14, 2009 6:35AM

I've always liked this one...nice die cracks on the obv with a tiny little cud on the reverse

Barndog · November 14, 2009 7:01AM

jmcu12 · November 16, 2009 3:46AM

Here is my favorite cud

Barndog · December 31, 2009 11:54AM

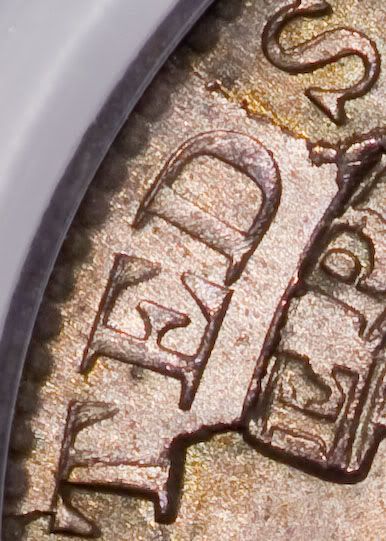

a closer view of one

Schatzy · December 31, 2009 11:59AM

Wolf359 · December 31, 2009 12:02PM

Barndog

U the cud man!

kingkoin56 · December 31, 2009 12:04PM

1838 large cent

STONE · December 31, 2009 12:13PM

I've got MANY more, but this was the only image(s) handy at the moment!

1833 JR-8 (R5), retained reverse CUD "OF A(2)"

The Retained CUD is extremely rare, as most other specimens of this die variety are without the Retained CUD, and just exhibit a light die crack through the middle of the "O" in "OF"

goodmoney4badmoney · December 31, 2009 12:26PM

Cool, my topic got resurrected! Nice cuds everyone. Now I'll have to try and find another cud picture, if I have one.

rockdude · December 31, 2009 12:31PM

Well I don't have any but thanks everyone for showing what you have.

coinsarefun · December 31, 2009 12:48PM

I have always found this one to be particularly interesting

For those who wish to read more.......click here

for those who want to read it here................

Ken Potter's Educational Series ...

The 1955-S Damaged Die Scenario
by Ken Potter - NLG
©Ken Potter 2004

One of the more interesting examples of die damage that we've seen on a US coin is found on the 1955-S cent. I first became aware of it back in the early 1980s when a New York collector asked if I had one in stock as he was assembling a collection of error coins dated 1955-S and needed one. Shortly after, I located one and the transaction was made. I figured I'd never see another as the word out on the variety was that it was nearly as scarce as hen's teeth.
However, as luck would have it, some time around the late 1980s/early 1990s, fellow errorist Chuck Avery of Michigan purchased a half bag and a full bag of uncirculated 1955-S cents, both with a serious vein of these varieties hidden within. As I remember it, the bags were purchased coincidentally at just about the same time from two different fellows living in Michigan about 50 miles apart. As luck would have it, Chuck searched the bags for errors and varieties and found over 100 examples of this variety between both! After selling a few off locally, Chuck offered to sell me the balance which came out to exactly 100 coins which needless to say ended up in my stock.
Now, with 100 coins in stock and over a dozen years passing since I've been handling them, you'd think I'd have gotten tired of the variety. Such is not the case. As simple as it may be, I am still as fascinated by the story behind the coin today as I was the first time I laid eyes on it. I enjoy looking at one of these babies every time I handle one!
So lets take a closer look. In the first image below we see a die crack that runs from rim to rim with a noticeable die break near the upper end. A die crack of this sort (with or without the intervening die break) is what some call a pre-cud die crack. This one was found in a bag along with several specimens of our subject coin by George Schaetzle of Tennessee in 1996.
In the second photo we see what started out as a simple rim to rim die crack (and die break) has indeed developed into a major die break or what others affectionately refer to as a "Cud." Specifically, the die crack has broken the rest of the way into the interior of the die, with the small section of die within the confines of the crack and rim separating completely from the main die face and shank. With this section of die now missing, the die will strike coins with a "blob" in that area representing the cavity that was left behind by the wayward chuck of die. Metal will simply flow up into it as far as the pressure of the dies will allow and remain unstruck.

Now for most cuds this is the beginning and end of the story but for this one we're just getting started on relating what will become an even more interesting feature to the coin than just the cud.
Instead of the wayward chunk of die just falling away, (as is typically the case), it somehow worked its way in between the dies. Perhaps as it was falling away it hitchhiked a ride back into the dies on an incoming planchet? We'll never know for sure exactly how it got there but in fact it did. As a result, when the dies came down to strike the next coin, that little chunk of broken die was struck too and managed to effect significant damage to both the obverse and reverse dies.
I theorize that it was most probably transported between the dies on top of a planchet as it appears to me that the damage to the obverse die is far more extensive than on the reverse. My guess is that the obverse took the brunt of the damage while the reverse die was protected partially by the planchet through which the chuck of die was undoubtedly driven to impart as least some damage to the reverse die. This is of course just one scenario and in truth this may not be the exactly how it happened. We can almost be sure that the inner section of the die, which would have presumably left a granular scar, was probably quite flat and more easily pushed into the upper die (were we see the granular damage with striations) than the outside shank area of that chuck of die. The shank section would have been smooth and rounded and perhaps had to be struck flatter before it could even start to effect as much damage. As such, it is possible that the dies came down together without a planchet in between and the differences in the severity of the damage between obverse and reverse is due to the placement and shape of the chunk of die. What we can reasonably conclude with a degree of certainty is that the broken piece of die is what undoubtedly caused the damage.

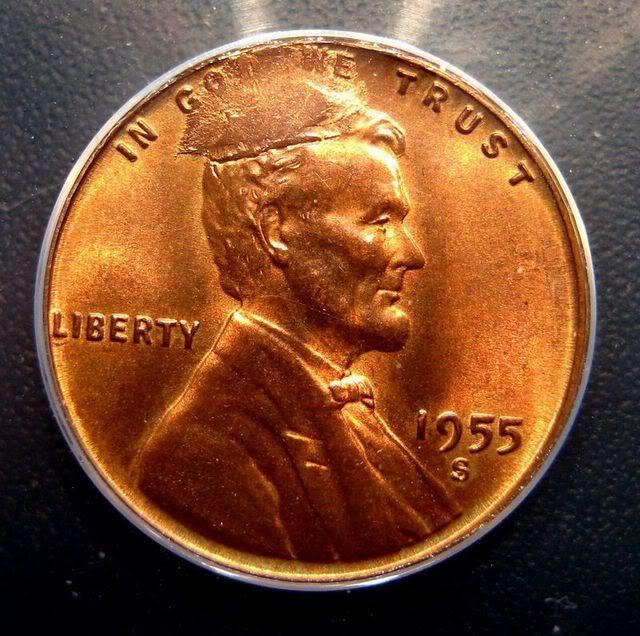

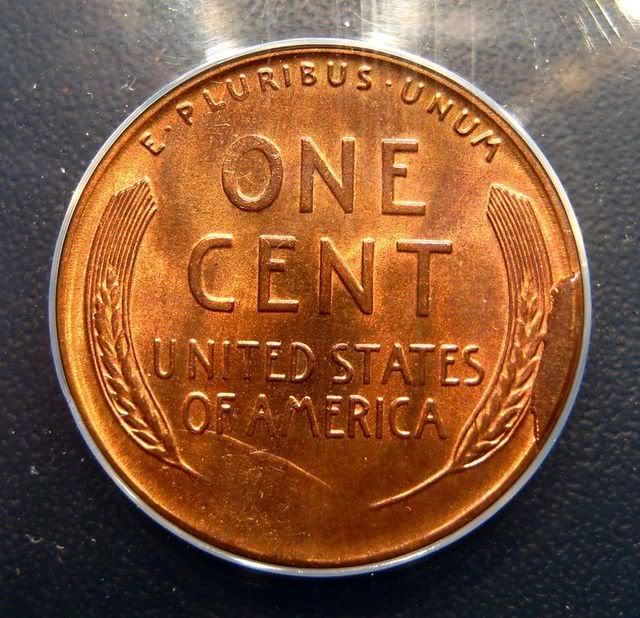

In the two photos below we see the effect of the damage to the obverse "capping" Lincoln's head and effacing portions of GOD WE of IN GOD WE TRUST. Notice the granular effect that we suggest is an indicator of the inner "core" side of the piece of die impacting the obverse. On the reverse we see a severe dent running diagonally from the lower OF of UNITED STATES OF AMERICA and reaching toward the right wheat stem. We also see the damage was extensive enough to flatten the wheat stem on the left. Notice there is no sign of granularity on this area of die damage

Here is a top view of a "cud" on a token die undoubtedly similar
to the one that was on the 1955-S cent die

Side view of same token die shows how cuds typically break from
the face and down along the shank or nose of the die
